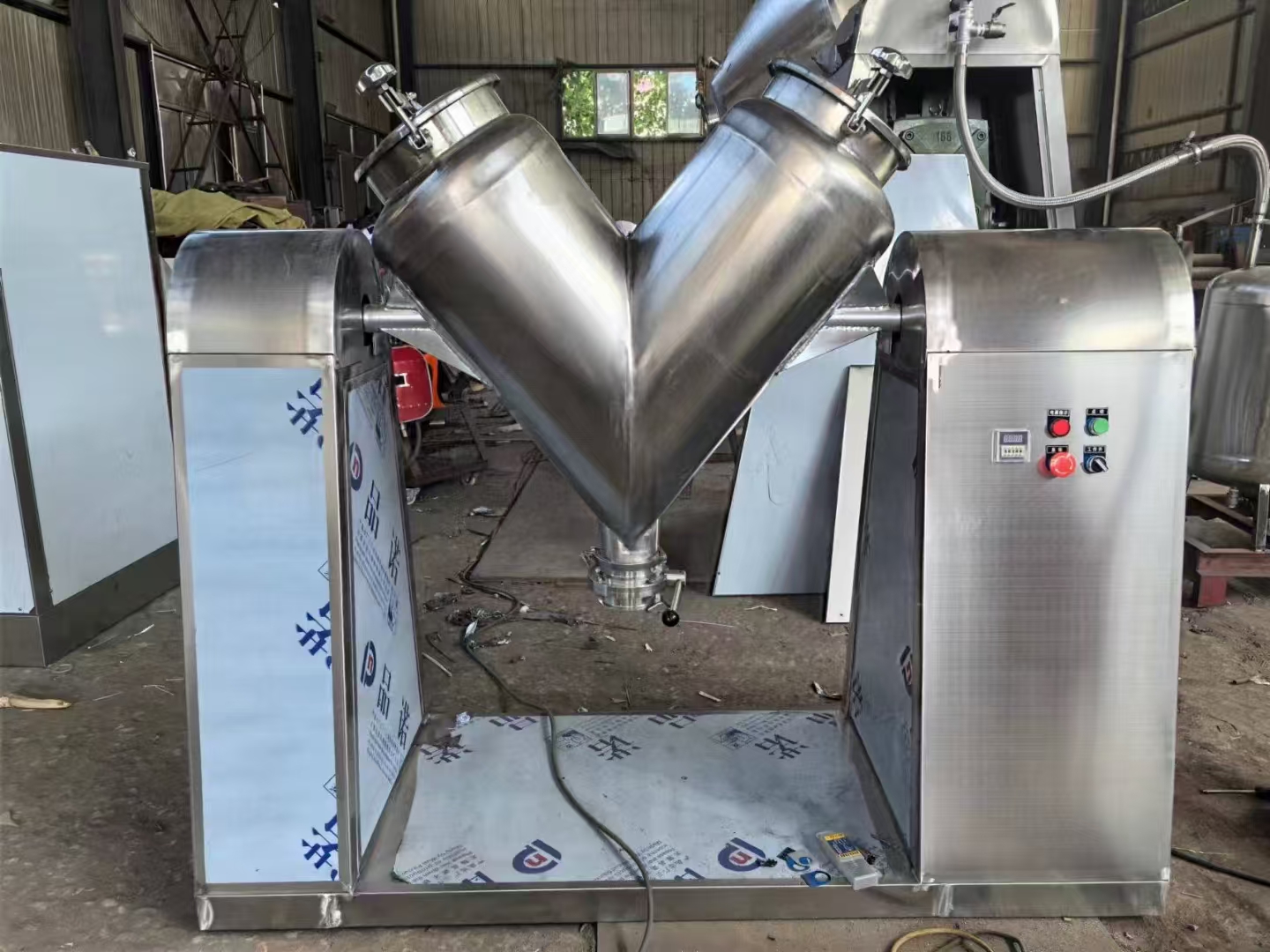

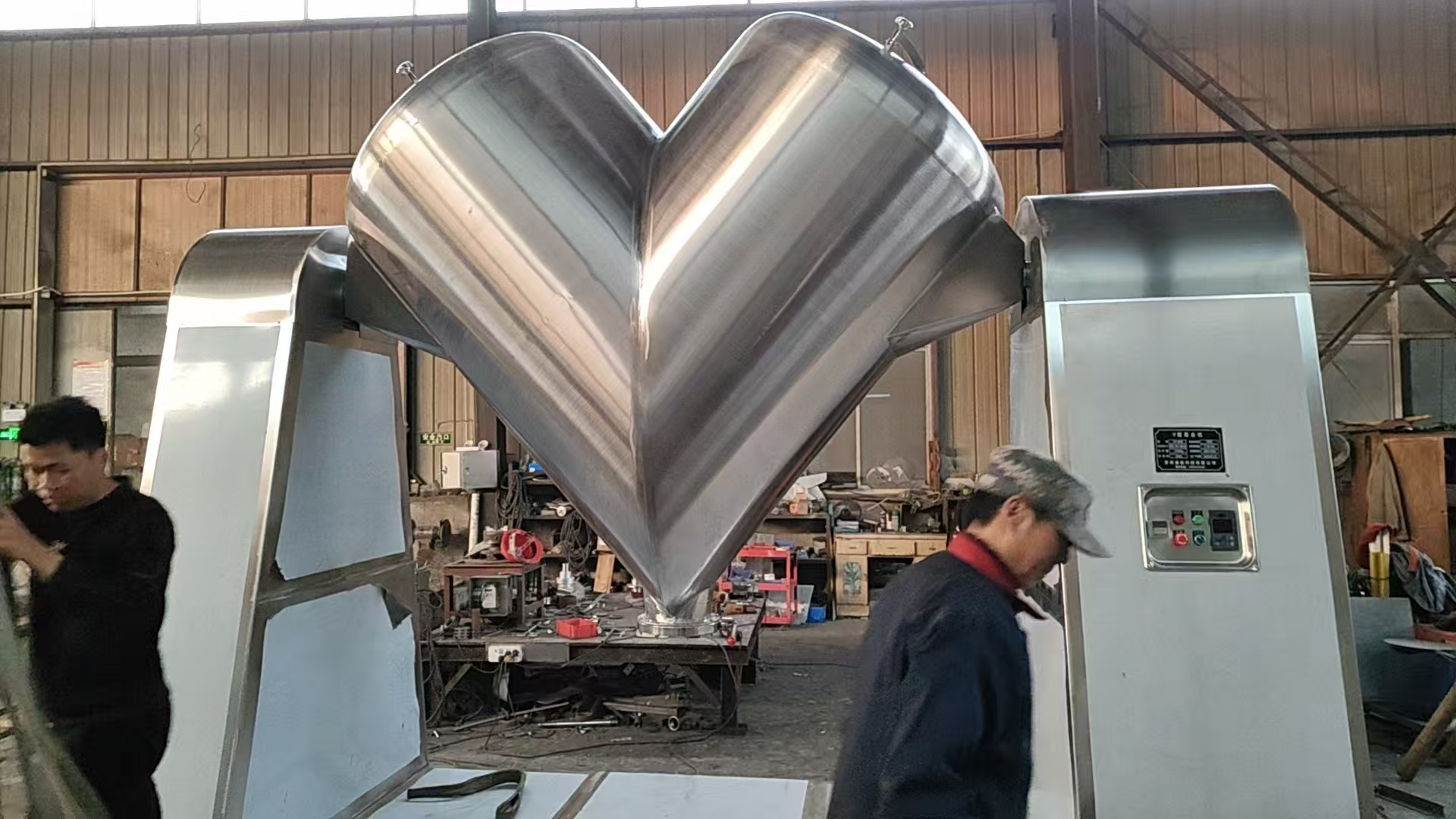

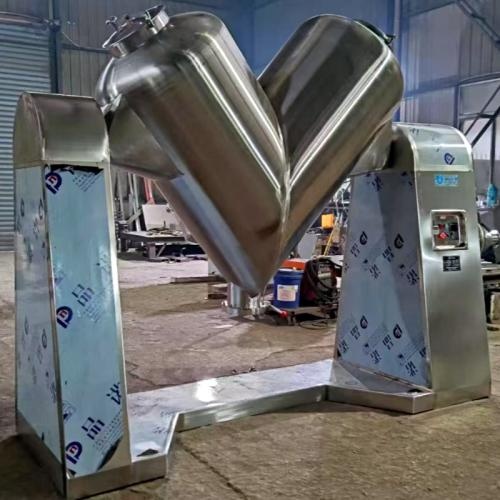

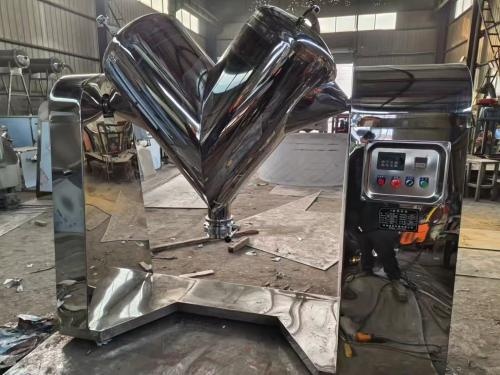

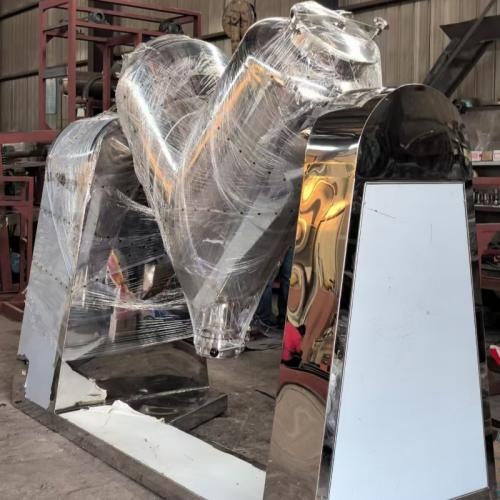

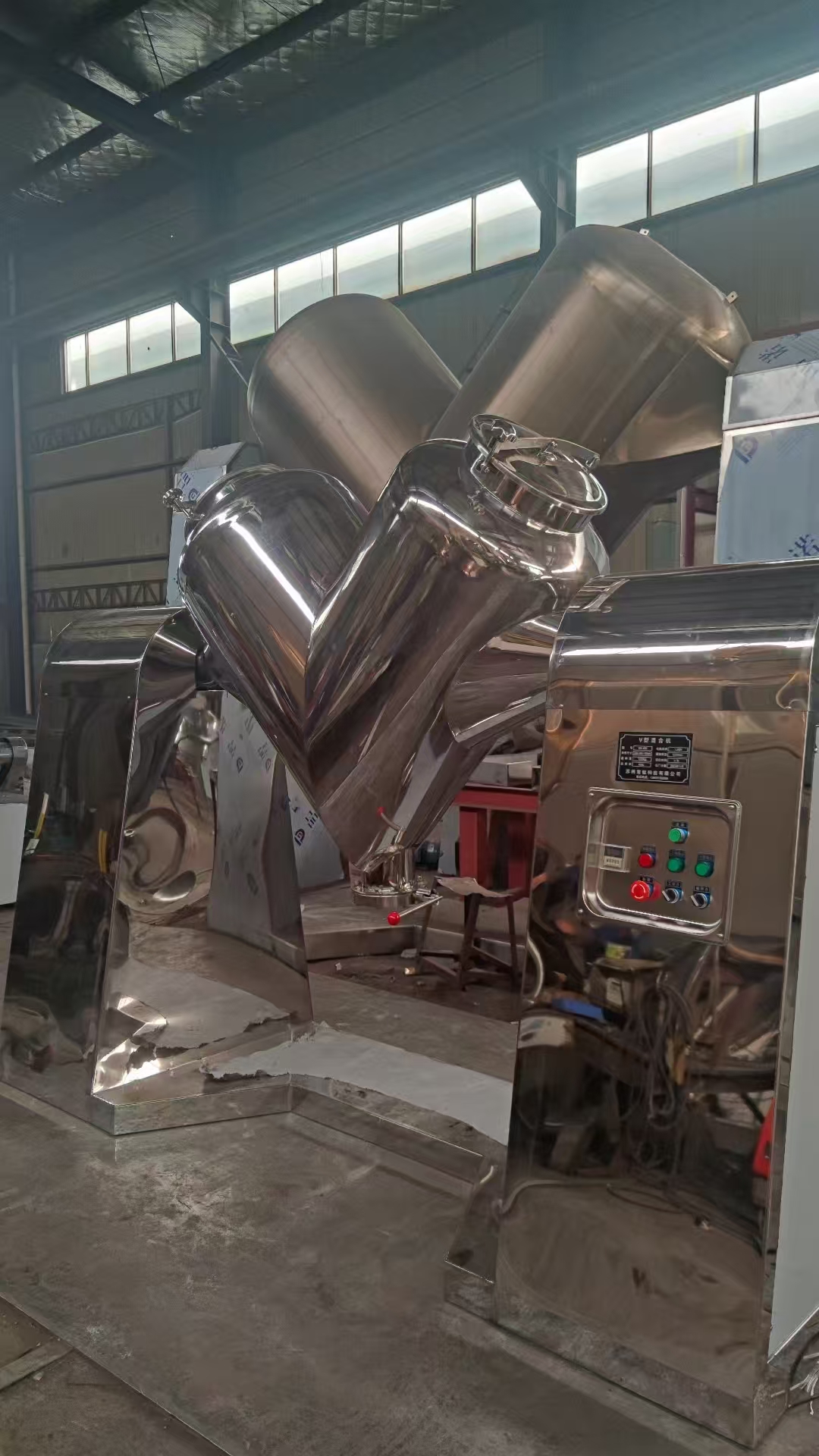

300L V type mixing machine

1. All the machine is made of stainless steel.

2. The mixing discharge valve is made of stainless steel, and the connection is sealed with shaped silicone rubber material to ensure the sealing effect of the machine during operation.

3. The feeding port of mixer adopts advanced quick opening structure, which makes it easy for users to operate during feeding and cleaning.

4. Two stainless steel guide plates are accelerated and polished at the joint of both sides of the mixer cylinder, so that there is no dead angle in the cylinder, which ensures that the mixer can achieve the ideal effect in mixing and cleaning.

5. The electrical control of the mixer is mechatronic and equipped with adjustable timing device, which can be set by the user according to the mixing time required by each batch of products, and the mixer will stop automatically after work.

6. The mixer is equipped with inching device, which further reduces the operation difficulty of workers.

Technical data

Volume:300L

Size: 2120×700×1700mm

Max loading volume:120L

Max loading weight:120kg

V drum volume:300L

V drum speed:9r/min

Turning height:1700mm

Power :1.5KW

Motor :3+N380V 50HZ

The machine is easy to operate and suitable to mix different kinds powder and granule .

Generally, The machine takes about 10-30 minutes to mix two or more types of powder or granular materials thoroughly and evenly.

Specially suitable for mixing two or more materials with significant differences in specific gravity, with high mixing uniformity and efficiency. The inner and outer walls of the mixing barrel are precision polished, resulting in a smooth, flat, and free from dead corners, and easy to clean surface.

The transmission system operates without vibration, noise, and is easy to maintain. The electrical control is precise and sensitive, and stainless steel butterfly valves are used for material discharge without leakage or dust flying.

Matters needing attention:

The loading of general mixed equipment is converted based on the volume of the material cylinder. When loading each time, according to

The specific gravity of the material (usually using the specific gravity of water as a reference).

The actual volume of the material cylinder X70% is equal to the effective loading space, and then using the effective space X70% is the mass you are preparing to load now.
If the specific gravity of the material changes, then use the effective space volume X80% X the specific gravity of the material, which is the mass of the prepared loading.

If the quality of the material prepared by the customer is too large, they need to explain to the manufacturer and choose a reinforced model, otherwise it will affect the service life of the equipment

About V type mixing machine We also can make 100L 200L 300L 400L 500L or bigger .
You can ensure us your specific requirements and we will recommend suitable model for you .
