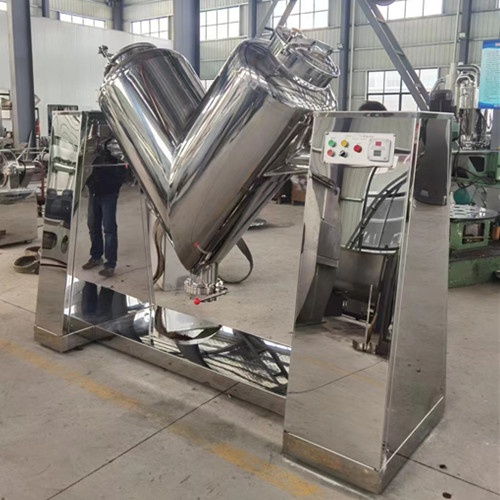

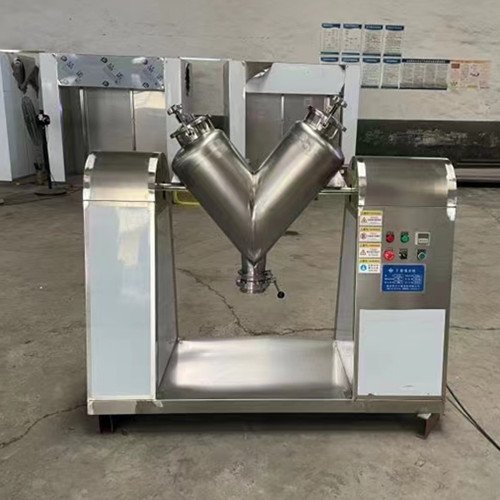

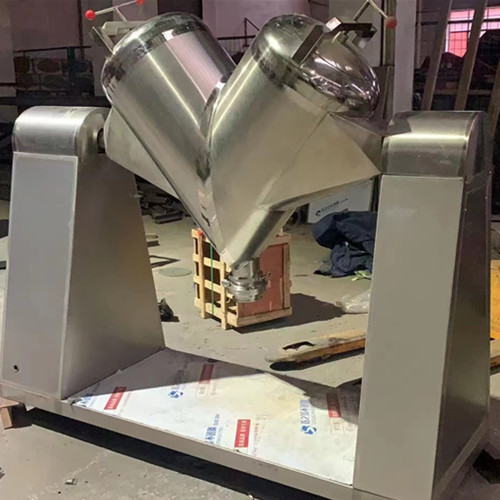

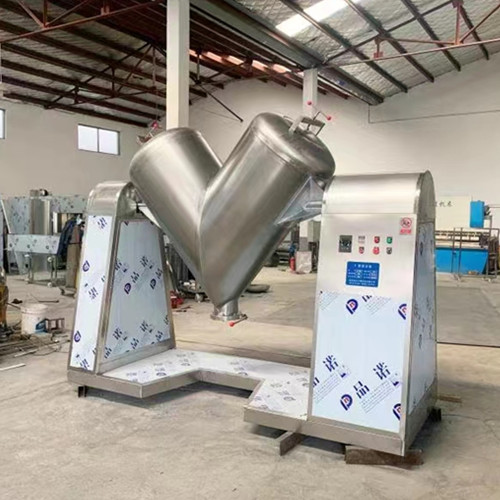

Stainless steel Customized V type powder mixer

Stainless steel Customized V type powder mixer

Online Inquiry

Stainless steel Customized V type powder mixer

Product features

1. The material flows vertically and horizontally in two unsymmetrical barrels, and the mixing uniformity is good.

2. It is convenient to use and suitable to different kinds worker to operate the machine .

3.Our machine can be loaded by vacuum loading machine. If you have vacuum loading machine already ,you can send me the machine data then we manufacture suitable mixer for you.

4.There is no transmission device inside the material barrel, and the operation is in sealed state

5 Timing function. This equipment is equipped with a timing switch to set the mixing time.

6. The V-shaped mixing cylinder is made of 304 stainless steel inside and outside. The mirror surface is polished, with beautiful appearance and convenient cleaning.

Scope of application

It is applicable to the mixing of powder particles with good material fluidity and small physical property difference, as well as the mixing of materials with low mixing requirements and short mixing time.

Because the materials in the V-type mixing container flow smoothly and will not damage the original shape of materials

The V type mixer is also applicable to the mixing of granular materials that are easy to break and wear, or the mixing of fine powder particles, blocks, and materials containing quantitative water.

So it is widely used in medicine Chemical, food and other industries.

Here is the V type powder mixer machine working principle ,You can know the machine more clearly

One end of the machine is equipped with a motor and a reducer.

The motor power is transmitted to the reducer through the belt, and the reducer is then transmitted to the V shaped barrel through the coupling.

Make the V-shaped bucket run continuously and drive the materials in the bucket to mix up, down, left and right in the bucket

The reducer motor drives the V shaped cylinder to rotate. Due to the different lengths of the two cylinders, the asymmetric flow of materials is formed, and the materials are repeatedly alternated, divided and combined in the cylinder

The material flows from one cylinder to another at random.

At the same time, there is slip between the powder particles, and the space is stacked for many times.

The particles or powder are continuously separated on the newly generated surface. Under the action of this repeated shearing and diffusion movement, the material can be mixed evenly.
