Stainless steel multifunctional emulsification tank

Stainless steel multifunctional emulsification tank

Online Inquiry

Stainless steel multifunctional emulsification tank

Drum model,V type and three-dimensional mixing machine are usually used to mix powder and particles raw material evenly.
While what machine should we use when we need to mix paste status raw material ? Multifunctional emulsification tank is the best choose.
Our emulsification tank has different functions,which can be used to stir,homogenize and emulsify materials.
It is usually used to produce sunscreen, sauces, drinkings, wine and ointments.

It with different volume from 50L to 500L,even bigger model 1000L,2000L and customized irregular model.

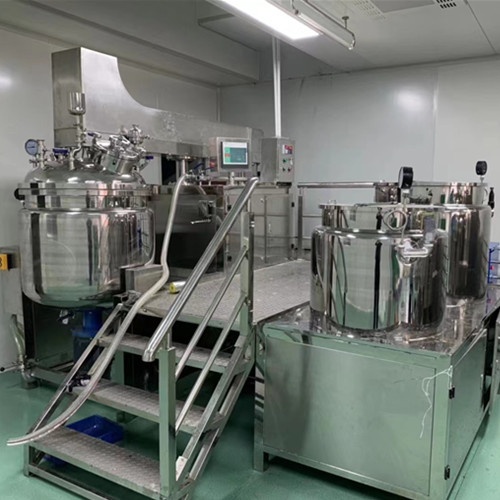

Now let`s take the following 500L multifunctional emulsification tank as example.

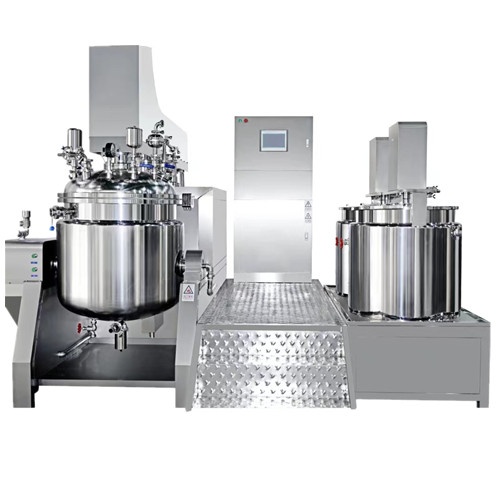

This unit is composed of two pre treating tanks,vacuum emulsifying and blending tank,vacuum pump,hydraulic lifting system,electric control system,
PLC system,internal and external circulation system and work platform.
The mainly part of this machine is made of SUS316,with 300 mesh mirror polishing process.
Electrical components are all equipped with Siemens brand,including motor and PLC control.Pre-treating tanks greatly reduces the time required to produce the next batch.
Vacuum pump helps create a better emulsifying environment for the material. Hydraulic lifting system makes the machine more automatic and easy to operate.
The internal and external circulation system makes the raw materials work under the homogenizing status of internal circulation ,and achieve the effect of completely emulsifying the material.
The control system is in the middle part of the machine.It is more convenient to adjust the program according to the production status.
Before shipping the machine out.We will connect all electric components together and test ready to make sure as soon as clients receive it,they can use it in the fastest time.

Technical data of 500L emulsification tank

No	Project name	Technical parameters	Brand and technology
500L Main tank
1	Volume	Work volume:500L Design volume	Mirror polishing inside and outside the pot 300 mesh
2	Inner laye	Cylinder: material SUS316L, wall thickness: 8mm Sealing head: material SUS316L, wall thickness: 8mm Boiler flange: material SUS304, thickness: 40mm	Tisco
3	Jacket	Material SUS304, wall thickness: 6mm Heating and cooling: jacket steam heating, tap water coolin	Equipped with diversion device
4	Outsourcing	Cylinder: material SUS304, wall thickness: 5mm Thermal insulation: aluminum silicate fiber cotton, thickness: 70mm	Mirror polishing 300 mesh

Total Power consumption

1	Mixing system	5.5kw	Siemens motor
2	Homogeneous system	15kw
3	vacuum system	3.85kw	Water ring vacuum pump
4	400L water pot mixing	2.2kw
5	250L oil port mixing	2.2kw

Simple electric connection and operation,stable performance,good homogenizing effect,high production efficiency,convenient cleaning,reasonable structure,
small land area and high automatic degree all makes our machine popular in the world.If you have any needs for the machine,please contact us to provide professional solutions.
Our machine widely used in different kinds industries
TEL/Whats app/We chat:008615138957292.

According to our our experience in customizing this series machines,The following questions are always asked.

The heating way:
There are two heating ways for the machine,electric heating and steam heating.
Our engineer can give the best suggestions according to the machine capacity and your other consideration.

The material to make the machine:
201 stainless steel,304 stainless steel,even 316 stainless steel can be selected based on your requirement.

The Voltage:
It is not problem to do locally use standard voltage.
110V/60Hz,single phase 220V/60Hz,3 phases,all can be customized.
