Stainless steel Metal Powder Cone Mixing Machine

 Stainless steel Metal Powder Cone Mixing Machine

Working principle

The machine generates composite motion of the material inside the cone through the revolution and rotation of the spiral, thereby achieving sufficient mixing of the powder.



Four forms of motion for handling materials

1. The spiral revolves along the wall, causing the material to move in a circular motion along the conical wall

2. Spiral rotation causes the material to rise along the spiral from the bottom of the cone

3. The combined motion of the spiral's revolution and rotation causes a portion of the material to be absorbed into the spiral cylindrical surface, while being subjected to the centrifugal force of the spiral's rotation, a portion of the material in the spiral cylindrical surface is discharged radially towards the vertebral body.

4. The rising material descends due to its own gravity, and the four movements generate convection, shear, and diffusion in the mixer, thereby achieving rapid and uniform mixing.

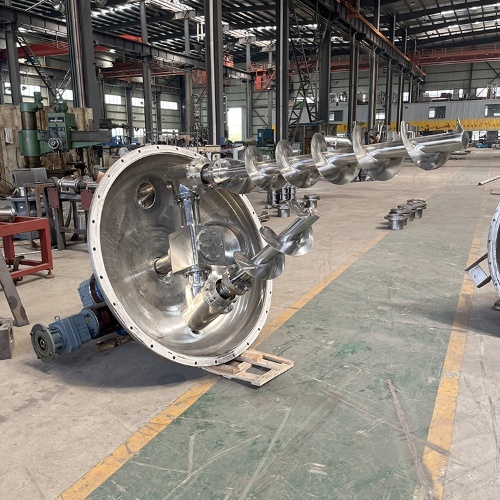

We can customize single helix, double helix, and triple helix according to customer requirements



Throwing knife and spray device can be added. If the process is special, it can also be customized according to the actual needs of the customer

The discharge valve has two forms: manual and automatic

If the material density is relatively high, the machine motor can be increased





Applied to the mixing reaction, drying, and cooling of powders and liquids in pharmaceuticals, chemicals, dyes, petroleum metallurgy, building materials, and other industries



Model

TH-0.2

TH-0.5

TH-1

TH-2

TH-4

Capacity(kg/time)

95

190

380

720

1400

Volume

0.2m³

0.5m³

1m³

2m³

4m³

Powder fineness

20-250 mesh

Power

2.2

3

4

5.5

11

Mixing time

6-10 min

6-10 min

8-10 min

8-10 min

8-10 min

Size (mm)

890*1850

1160*2250

1450*2700mm

1850*3450mm

2260*4210mm
