industrial pharmaceutical powder mixing machine

industrial pharmaceutical powder mixing machine

Product No.：2026827163144
Online Inquiry

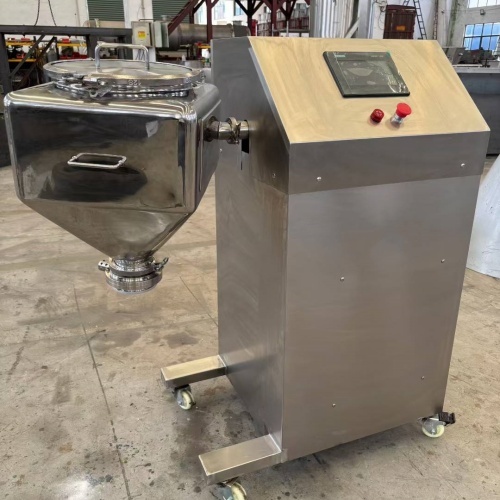

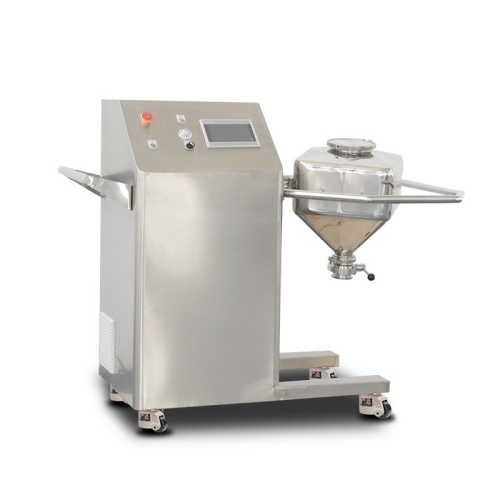

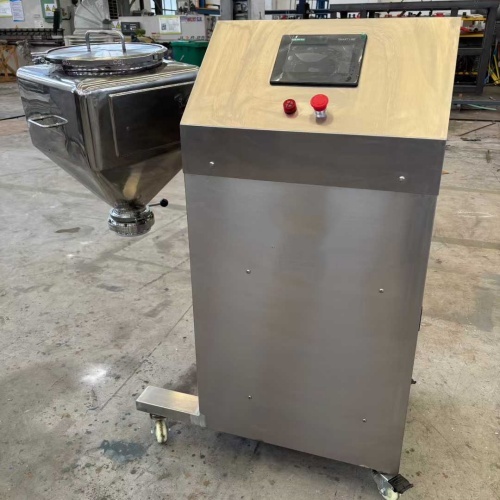

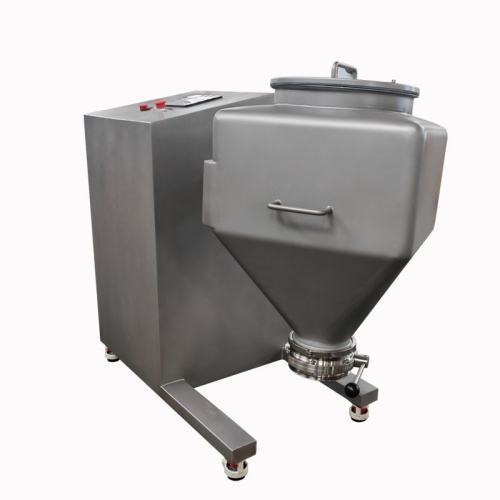

The single arm square cone industrial pharmaceutical powder mixing machine has a unique structural design.

The mixing container rotates, and the materials move in multiple directions during the rotation process, allowing the materials in the mixing drum to be fully mixed and achieving high mixing uniformity.

Working principle of industrial pharmaceutical powder mixing machine

During the mixing process of the single arm square cone mixer, the rotation axis deviates from the center of the mixing container, so the material undergoes diffusion flow and tangential motion during the rotation of the container.

The motor is a well-known domestic brand of pure copper wire motor. The machine frame and mixing tank are made of 304 stainless steel, with a maximum loading factor of 0.7, suitable for different types of mixed powders and particles.

If your material is a special material, the interior of the mixer can also be customized with anti-corrosion, anti adhesion, isolation, wear-resistant or other functional coatings according to your material

Technicial data

Mixing bucket volume : 300L

Max Loading volume : 240L

Spindle speed : 14RPM

Power:1.5kw

Weight:400kg

Size: 1850*1280*1980mm
