Z type snack nut grain elevator

Online Inquiry

Favorable price Z type snack nut grain elevator

The Z type elevator is mainly used for vertical lifting of granular materials such as food, crops, grain, chemical products, animal feed, plastic products, etc. with good fluidity.
The quantitative automatic packaging system, which is composed of computer combination scale and packaging machine, is widely used in various industries in daily life.
It is also the main component of various production lines ，so choose suitable Z type elevator is very important for the raw material delivery and package.

Main parameters/features:

Hopper capacity: 1.8L/2.5L(also can customized)

Hopper size: (L) 420x (W) 140x (H) 70

Conveying capacity: 3~6m/h

Motor power: 0.75KW (50Hz/2.0A)

Voltage: 220V/50/60HZ

Vibrator amplitude Max: 4mm (double vibrator, maximum voltage 220V)

The hoist has overload protection function, and the overload protection system is composed of mechanical (torque limiter) and electrical (time relay).
Effectively protect the motor, chain and hopper.So the machine is reliable safety and reduce risks in work

When the back cover door is opened under operation, the elevator will stop automatically to prevent accidents during working.

The rear cover door is equipped with plexiglass to clearly see the operation of the hopper.
The hopper has strong pressure resistance, and there are patterns in the hopper to prevent materials from sticking in the hopper.So tthe machine will be easier to keep clean

Working principle

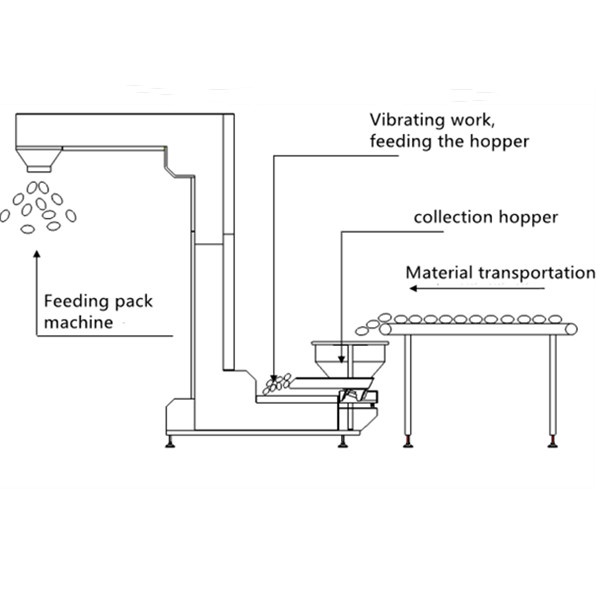

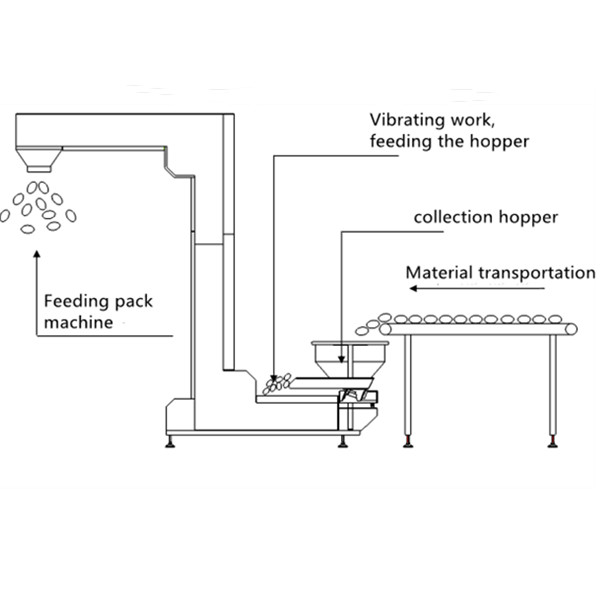

When the Z type elevator receives the working signal, the three-phase asynchronous motor drives the chain to drive the hopper to transport materials to the packaging system.
While the motor is working, the vibrator is also in working state to add materials to the hopper. (As shown in the figure below)

The above information is Z type machine details
If the Z type elevator want to achieve its maximum use , it need work with 10 head weigher and packing machine

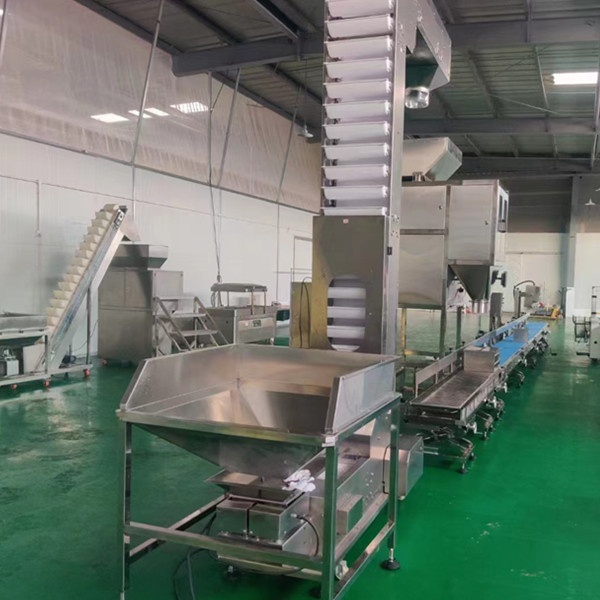

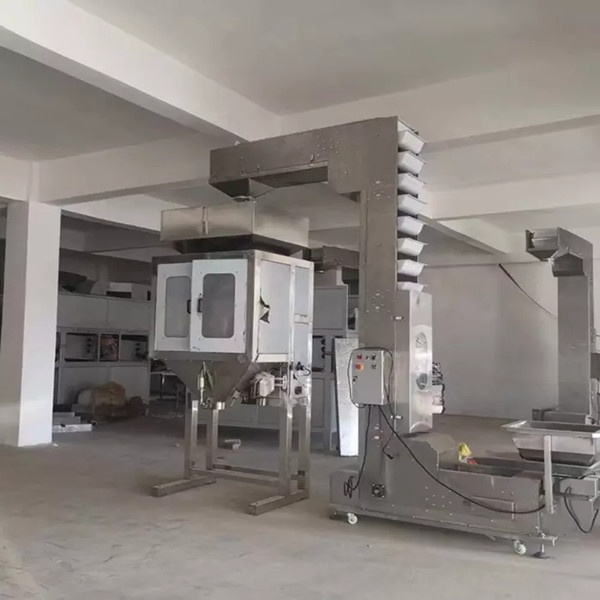

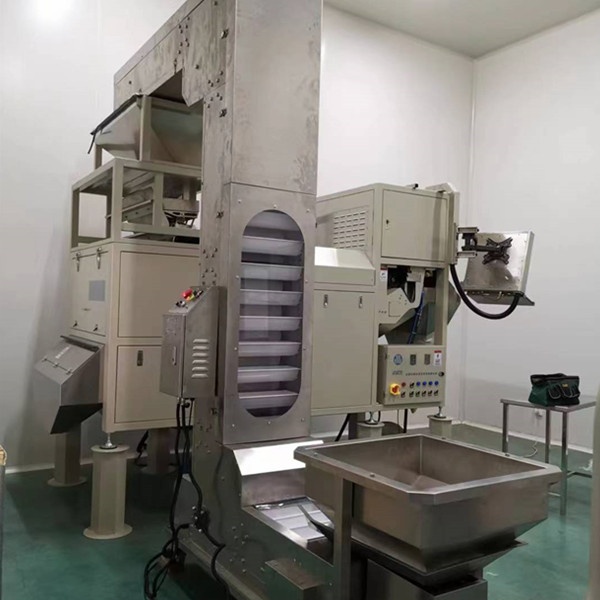

Please check the picture which worked together in our customer factory

If your factory need customized Z type elevator for snack nut grain ,you also can send us your factory size and specific requirements
We can Customized different sizes machine according to factory actual situation

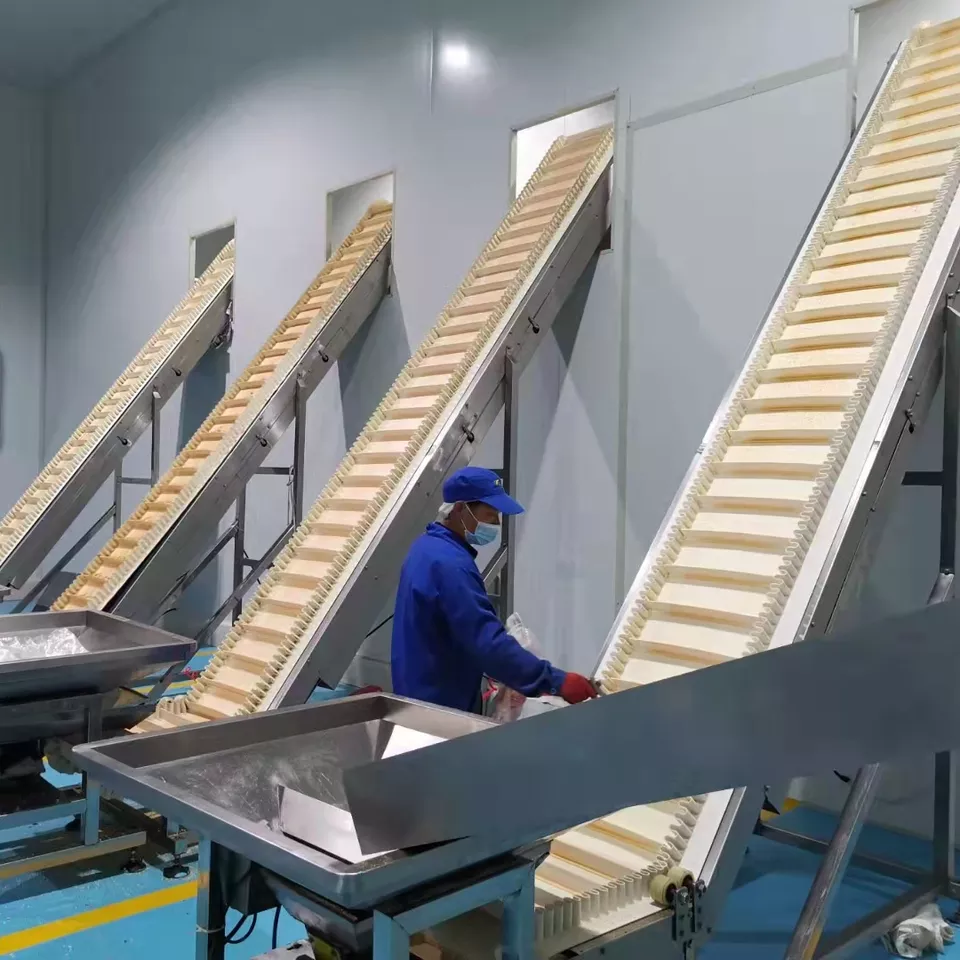

Here is the successful project we designed for our customer

Machine Video

After you checked the above information ,if you want to buy our Z type elevator
Please ensure us your raw material , lifting height , need coonect packing machine or not
Then our sales manager will give you suitable solution
